VEVOR Hydraulic Pipe Bender, 16 Ton Manual Copper Exhaust Pipe Bending Machine With 8 Dies (1/2″ – 3″) And 90 – 180° Adjustable Rollers, Red

Product Description

Feature:

PLEASE NOTE: The pipes cannot be bent to 90° all at once, and need to be bent to 90° gradually in sections.

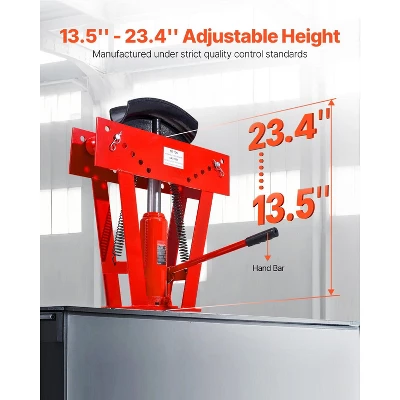

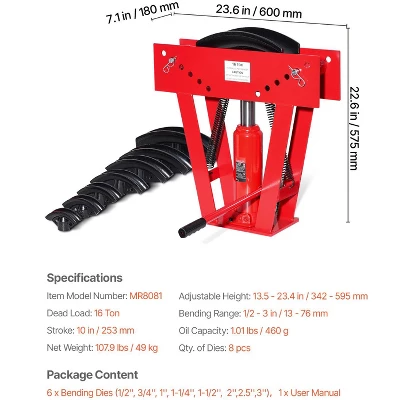

Specifications: Dead Load -16 Ton, Stroke: 10-inch (253mm), Adjustable Height: 13.5-23.4 inch, Bending Range: 1/2-3 (13 – 76 mm), Oil Capacity: 1.01 lbs (460g).

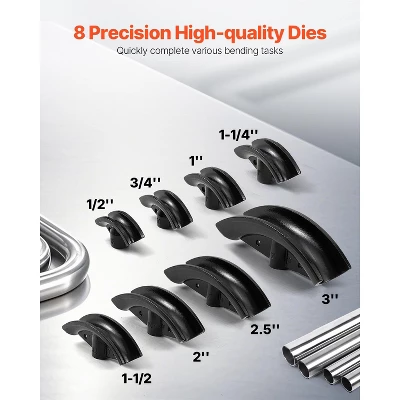

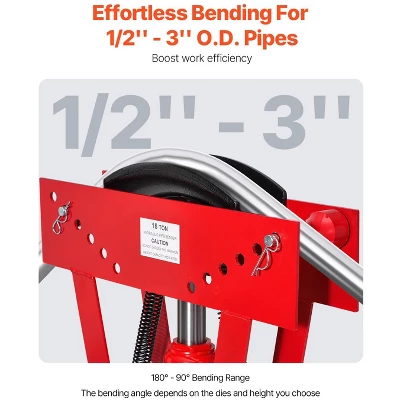

High-Quality Dies & 90°-180° Bending: Our 16-ton hydraulic pipe bender comes with 8 precision casting dies (1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2.5”, 3”) to accommodate various pipe sizes. With 6 slots on both sides, the rollers feature 6 adjustable positions to meet 90°-180° different bending angles.

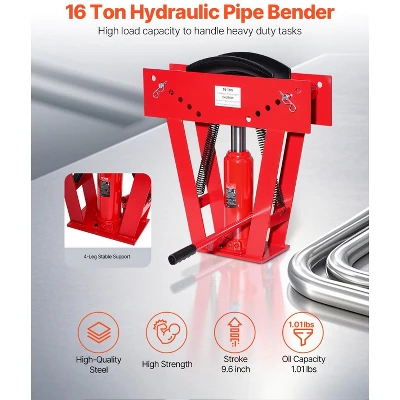

Durable and Sturdy: This exhaust pipe bender is made from high-quality steel with solid structure and excellent wear resistance. Equipped with a hydraulic and return spring system, this tube bending tool helps you efficiently complete pipe bending tasks.

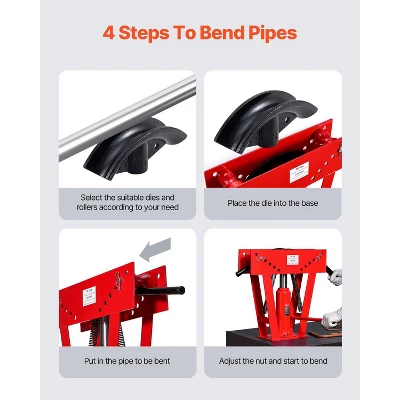

Easy to Use: Select and install the appropriate die, place the pipe on the die, and adjust the rollers to the desired position. Use the lever on the pipe bender to easily achieve the targeted bending with minimal effort.
Wide Applications: This hydraulic pipe bender comes with 4-leg stable support and strong dead loading capacity, making it ideal for electric power construction, highway and railway construction, boilers, bridges, piping construction, railing construction, and roll cage construction.

Package Content

8 x Precisely Molded Die (1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2.5″, and 3″)
2 x Screw (M14x25)
1 x User Manual

Product Highlights

• Accommodates pipes from 1/2″ to 3″ with 8 precision dies.
• Adjustable bending angles from 90° to 180° for flexibility.
• Durable steel construction with hydraulic and spring system.
• Ideal for various construction tasks with a strong 16-ton load capacity.
